GTSheetMenuView

master

A customizable menu presented as a sheet that can be integrated in iOS projects. Available as a Swift Package.
gabrieltheodoropoulos/GTSheetMenuView

GTSheetMenuView

Language Platform License Version

A customizable menu presented as a sheet that can be integrated in iOS projects.

About

GTSheetMenuView is a Swift library that can be integrated in iOS projects allowing to present a menu as a sheet from the bottom of the screen. It is highly customizable through the available public API. It's implemented in a way so initialization and configuration of GTSheetMenuView instances can be done in a declarative fashion.

Suitable for UIKit based projects.

Integrating GTSheetMenuView

To integrate GTSheetMenuView into your projects follow the next steps:

  1. Copy the repository's URL to GitHub.
  2. Open your project in Xcode.
  3. Go to menu File > Swift Packages > Add Package Dependency....
  4. Paste the URL, select the package when it appears and click Next.
  5. In the Rules leave the default option selected (Up to Next Major) and click Next.
  6. Select the GTSheetMenuView package and select the Target to add to; click Finish.
  7. In Xcode, select your project in the Project navigator and go to General tab.
  8. Add GTSheetMenuView framework under Frameworks, Libraries, and Embedded Content section.

Don't forget to import GTSheetMenuView module anywhere you are about to use it:

import GTSheetMenuView

Usage Example

Before initializing a GTSheetMenuView instance, create a collection of GTSheetMenuItemInfo objects. Each object represents an item, and you can provide the title, and optionally a subtitle and an image upon initialization:

var items = [GTSheetMenuItemInfo]()
items.append(GTSheetMenuItemInfo(title: "Edit", subtitle: nil,image: editImage))
items.append(GTSheetMenuItemInfo(title: "Copy", subtitle: nil, image: copyImage))
items.append(GTSheetMenuItemInfo(title: "Cut", subtitle: nil, image: cutImage))
items.append(GTSheetMenuItemInfo(title: "Share", subtitle: nil, image: shareImage))
items.append(GTSheetMenuItemInfo(title: "Delete", subtitle: nil, image: deleteImage))

Here's an example of initializing and configuring a GTSheetMenuView menu. The number of methods that will be called depends on the customization you want to perform on the menu. The following is just an extended example:

GTSheetMenuView.addSheetMenuView(to: self.view)
    .set(items: items)
    .setTitle("My sheet menu")
    .setTitleFont(to: UIFont(name: "Futura", size: 19)!)
    .setSheetViewCornerRadius(15)
    .showItemImageBeforeTitle(false)
    .centerItemContent()
    .setSheetViewHorizontalPadding(leadingPadding: 10, trailingPadding: 10, forHorizontalSizeClass: .regular, verticalSizeClass: .regular)
    .setSheetViewHorizontalPadding(leadingPadding: 10, trailingPadding: 10, forHorizontalSizeClass: .regular, verticalSizeClass: .compact)
    .setItemSelectionColor(.lightGray)
    .setTitleFontForAllItems(UIFont(name: "AvenirNext-Regular", size: 17)!)
    .setTitleAlignmentForAllItems(.left)
    .setItemTitleLabelHeight(36.0)
    .setMinimumHeightForAllItems(60)
    .setItemTitleTextColor(at: 4, color: .red)
    .onDismiss {
        print("Sheet menu was dismissed!")
    }
    .onItemSelection({ (itemIndex) in
        print("Did tap at index \(itemIndex)")
        // Perform further actions...
    })
    .showAnimated()

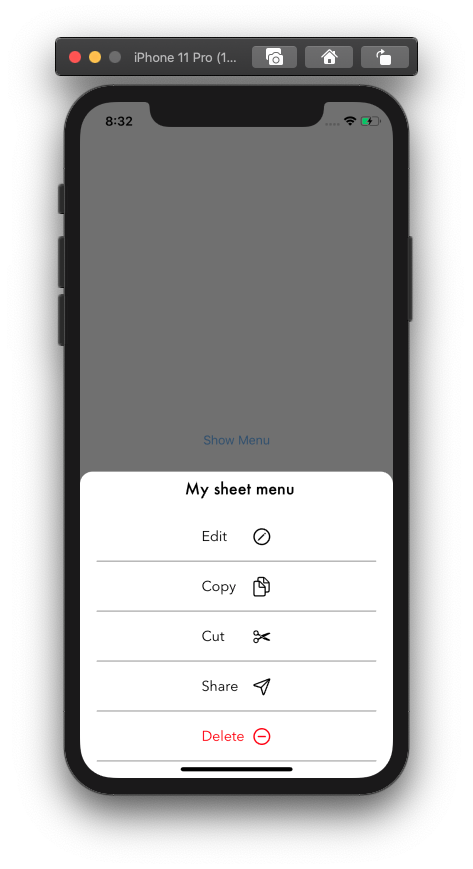

GTSheetMenuView Sample

There are more public methods to use; see the next part for that.

By default, menu is dismissed when tapping on the overlay view. You can disable that by calling the following method:

.disableSheetMenuDismissalOnOverlayTap()

To manually dismiss the menu, call the following class method:

GTSheetMenuView.hideAnimated(from:duration:)

The initialized GTSheetMenuView instance can be optionally assigned to a variable:

var menu = GTSheetMenuView.addSheetMenuView(to: self.view)
    ...
    ...

To get the GTSheetMenuItemInfo object matching to a specific index, use the getItemInfo(at:) instance method through a menu object:

let info = menu.getItemInfo(at: 1)

To get the item view as a GTSheetMenuItemView object for a specific index, call the getItemView(at:) instance method through a menu object:

let itemView = menu.getItemView(at: 1)

Through the itemView it's possible to access the title and subtitle labels, as well as the imageView of the item view.

Please take a look at the available public API presented right next. It contains a variety of methods allowing to achieve high customization.

Public API

// -- Class Methods

// Create and add a sheet menu view to a view.
addSheetMenuView(to:)

// Hide and remove a sheet menu view instance animated.
hideAnimated(from:duration:)



// -- Instance Methods

// -- Appearance & Disappearance --

// It prepares a `GTSheetMenuView` for appearance by configuring any
// internal subviews and setting the necessary autolayout constraints,
// and then it presents it animated.
showAnimated(duration:completion:)


// Implement additional actions once the sheet menu view has been dismissed.
onDismiss(_:)



// -- Sheet View Width & Horizontal Padding --

// Provide a fixed width for the sheet view that will apply to all size class combinations.
setSheetViewWidth(_:)


// Provide a fixed width value for a given combination of horizontal and
// vertical size classes.
setSheetViewWidth(_:forHorizontalSizeClass:verticalSizeClass:)


// Provide leading and trailing padding values for all size class combinations.
setSheetViewHorizontalPadding(leadingPadding:trailingPadding:)


// Set the leading and trailing pardding values for specific size class combinations.
setSheetViewHorizontalPadding(leadingPadding:trailingPadding:forHorizontalSizeClass:verticalSizeClass:)



// -- Sheet View General --

// Set the background color of the menu view.
setMenuViewBackgroundColor(_:)


// Set the corner radius of the sheetview.
setSheetViewCornerRadius(_:)


// Update the menu items container view default insets.
updateItemsContainerInsets(_:)


// Specify whether the imageview of the menu items should be
// displayed before or after the title.
showItemImageBeforeTitle(_:)


// Hide the separators shown among menu items.
hideSeparators()


// Align menu item content centered horizontally.
centerItemContent()



// -- Sheet View Title --

// Set the sheet menu title.
setTitle(_:)


// Set the sheet menu title's text color.
setTitleTextColor(to:)


// Set the sheet menu title's font.
setTitleFont(to:)


// Set the sheet menu title's text alignment.
setTitleTextAlignment(_:)



// -- Items Title --

// Set the title font for all menu items.
setTitleFontForAllItems(_:)


// Set the title font for the menu item at the given index.
setItemTitleFont(at:font:)


// Set the title text color for all menu items.
setTitleTextColorForAllItems(_:)


// Set the title text color for the menu item at the given index.
setItemTitleTextColor(at:color:)


// Set title text alignment for all menu items.
setTitleAlignmentForAllItems(_:)


// Set title text alignment for the menu item at the given index.
setItemTitleAlignment(at:alignment:)


// Set the height of the title label for all items.
setItemTitleLabelHeight(_:)


// -- Items ImageView --

// Set the size (width and height) of the image view for all items.
setItemImageViewSize(_:)


// Set the content mode of the imageview for all items.
setItemImageViewContentMode(_:)



// -- Items Height --

// Set the minimum desired height for all menu items.
setMinimumHeightForAllItems(_:)


// Set the minimum desired height for the item at the given index.
setMinimumItemHeight(at:height:)



// -- Subtitle --

// Specify the text color of the subtitle for all items.
setSubtitleTextColor(_:)


// Specify the text color of the subtitle for the item at the given index.
setSubtitleTextColor(at:color:)


// Set the font of the subtitle for all items.
setSubtitleFontForAllItems(_:)


// Set the subtitle font for the item at the given index.
setSubtitleFont(at:font:)


// Set the alignment of the subtitle for all items.
setSubtitleAlignmentForAllItems(_:)


// Set the subtitle text alignment for the item at the given index.
setSubtitleAlignment(at:alignment:)



// -- Overlay --

// Set a custom background color for the overlay view.
setOverlayColor(_:)


// Disable dismissing the sheet menu view by tapping on the overlay view.
disableSheetMenuDismissalOnOverlayTap()



// -- Set Menu Items --

// Provide the items to display as a collection of `GTSheetMenuItemInfo` elements.
set(items:)



// -- Get Item & Item View --

// Get the menu item view at the given index.
getItemView(at:)


// Get the menu item at the given index as a `GTSheetMenuViewInfo` object.
getItemInfo(at:)



// -- Item Selection --

// Perform an action upon an item's selection.
onItemSelection(_:)


// Set the selection color shown when an item is tapped.
setItemSelectionColor(_:)

Remarks

  • See Xcode's Quick Help for further details about each method presented above.

  • All methods above return a GTSheetMenuView instance. Exceptions to that are the following:

    • hideAnimated(from:duration:) class method: Does not return any value.
    • getItemView(at:): Returns a GTSheetMenuItemView object.
    • getItemInfo(at:): Returns a GTSheetMenuItemInfo object.
  • Assigning the initialized GTSheetMenuView instance to a variable or property is optional, as all methods that return it have been marked with the discardableResult attribute.

  • Always call the showAnimated(duration:completion:) method as the last one in the series of methods you'll use to configure the sheet menu.

Version

Current up-to-date version is 1.0.2.

License

GTSheetMenuView is licensed under the MIT license.

Description

  • Swift Tools 5.2.0
View More Packages from this Author

Dependencies

  • None
