`SheeKit`

Customize and resize sheets in SwiftUI with SheeKit. Utilise the power of UISheetPresentationController and other UIKit features.

Overview

SheeKit is a bridge between SwiftUI and UIKit which enriches the modal presentations in SwiftUI with the features available in UIKit.

SheeKit provides two modifiers for presenting the sheet, similar to SwiftUI.sheet(...):

controlled by isPresented boolean flag
controlled by the optional Identifiable item

Additionally, SheeKit allows to:

customize sheet detents to present half-screen sheets
define different modal presentation styles for different Identifiable items
customize the preferred presented view controller properties via UIViewControllerProxy
utilise the UIPopoverPresentationController.adaptiveSheetPresentationController and customize adaptive sheet for popover which will be used on iPhone and in compact horizontal size class of the scene on iPad.

Customizing sheet detents to present half-screen sheets

With iOS 15, sheets can be resizable between large() and medium() detents and animate the size transitions. In order to customize detents, provide SheetProperties to the ModalPresentationStyle/pageSheet(properties:) or ModalPresentationStyle/formSheet(properties:).

struct ShowLicenseAgreement: View {
    @State private var isShowingSheet = false
    @State private var selectedDetentIdentifier = UISheetPresentationController.Detent.Identifier.medium
    var body: some View {
        Button(action: {
            isShowingSheet.toggle()
        }) {
            Text("Show License Agreement")
        }
        .shee(isPresented: $isShowingSheet,
              presentationStyle: .formSheet(properties: .init(detents: [ .medium(), .large() ], selectedDetentIdentifier: $selectedDetentIdentifier, animatesSelectedDetentIdentifierChange: true)),
              onDismiss: didDismiss) {
            VStack {
                Text("License Agreement")
                    .font(.title)
                    .padding(50)
                Text("""
                        Terms and conditions go here.
                    """)
                    .padding(50)
                Button("Dismiss",
                       action: { isShowingSheet.toggle() })
            }
        }
    }

    func didDismiss() {
        // Handle the dismissing action.
    }
}

Define different modal presentation styles for different Identifiable items

In SwiftUI, there are three different modifiers for popover, fullScreenCover and sheet, which don't allow the developer to show different styles of the dialog based on the same source of truth (provided by item).

With SheeKit, it's possible - just provide presentationStyle which corresponds to your item.

struct ShowPartDetail: View {
    @State var sheetDetail: InventoryItem?
    var body: some View {
        Button("Show Part Details") {
            sheetDetail = InventoryItem(
                id: "0123456789",
                partNumber: "Z-1234A",
                quantity: 100,
                name: "Widget")
        }
        .shee(item: $sheetDetail,
              presentationStyle: presentationStyle,
              onDismiss: didDismiss) { detail in
            VStack(alignment: .leading, spacing: 20) {
                Text("Part Number: \(detail.partNumber)")
                Text("Name: \(detail.name)")
                Text("Quantity On-Hand: \(detail.quantity)")
            }
            .onTapGesture {
                sheetDetail = nil
            }
        }
    }

    func didDismiss() {
        // Handle the dismissing action.
    }

    var presentationStyle: ModalPresentationStyle {
        var sheetProperties = SheetProperties()
        sheetProperties.detents = sheetDetail?.quantity ?? 0 > 100500 ? [ .large() ] : [ .medium() ]
        return .formSheet(properties: sheetProperties)
    }
}

struct InventoryItem: Identifiable {
    var id: String
    let partNumber: String
    let quantity: Int
    let name: String
}

Customize the preferred presented view controller properties via UIViewControllerProxy

In UIKit, UIViewController class has many properties which allow to alter the user experience depending on the use case, like forbidding of interactive dismiss of the sheets via isModalInPresentation, customizing status bar appearance, preferred content size, or modal transition style. Unfortunately, this functionality is not exposed in SwiftUI. SheeKit solves this problem by allowing the consumer to provide UIViewControllerProxy which defines preferred parameters of the presented view controller.

struct ShowLicenseAgreement: View {
    @State private var isShowingSheet = false
    @State private var selectedDetentIdentifier = UISheetPresentationController.Detent.Identifier.medium
    var body: some View {
        Button(action: {
            isShowingSheet.toggle()
        }) {
            Text("Show License Agreement")
        }
        .shee(isPresented: $isShowingSheet,
              presentationStyle: .formSheet(properties: .init(detents: [ .medium(), .large() ], selectedDetentIdentifier: $selectedDetentIdentifier, animatesSelectedDetentIdentifierChange: true)),
              presentedViewControllerParameters: presentedViewControllerParameters,
              onDismiss: didDismiss) {
            VStack {
                Text("License Agreement")
                    .font(.title)
                    .padding(50)
                Text("""
                        Terms and conditions go here.
                    """)
                    .padding(50)
                Button("Dismiss",
                       action: { isShowingSheet.toggle() })
            }
        }
    }

    func didDismiss() {
        // Handle the dismissing action.
    }

    var presentedViewControllerParameters: UIViewControllerProxy {
        var parameters = UIViewControllerProxy()
        parameters.preferredStatusBarStyle = .darkContent
        parameters.preferredStatusBarUpdateAnimation = .fade
        parameters.isModalInPresentation = true
        parameters.modalTransitionStyle = .flipHorizontal
        return parameters
    }
}

Utilise the adaptiveSheetPresentationController of UIPopoverPresentationController and customize adaptive sheet for popover

In SwiftUI, when popover is shown as a sheet when the user minimizes the app to the smallest size on top of the other app on iPad, or when the popover is shown on iPhone as a sheet, developer can't get a medium-detent sheet in a compact size class of a scene instead of a popover. The sheet into which popover adapts, is always with .large() detent.

SheeKit allows the developer to customize this behavior and to specify the detents for the sheet in which the popover adapts to, along with the preferred popover arrow direction and the source rect.

struct ShowLicenseAgreement: View {
    @State private var isShowingSheet = false
    @State private var selectedDetentIdentifier = UISheetPresentationController.Detent.Identifier.medium
    var body: some View {
        Button(action: {
            isShowingSheet.toggle()
        }) {
            Text("Show License Agreement")
        }
        .shee(isPresented: $isShowingSheet,
              presentationStyle: .popover(permittedArrowDirections: .top,
                                          sourceRectTransform: { $0.offsetBy(dx: 16, dy: 16) },
                                          adaptiveSheetProperties: .init(detents: [ .medium(), .large() ],
                                                                         selectedDetentIdentifier: $selectedDetentIdentifier,
                                                                         animatesSelectedDetentIdentifierChange: true)),
              onDismiss: didDismiss) {
            VStack {
                Text("License Agreement")
                    .font(.title)
                    .padding(50)
                Text("""
                        Terms and conditions go here.
                    """)
                    .padding(50)
                Button("Dismiss",
                       action: { isShowingSheet.toggle() })
            }
        }
    }

    func didDismiss() {
        // Handle the dismissing action.
    }
}

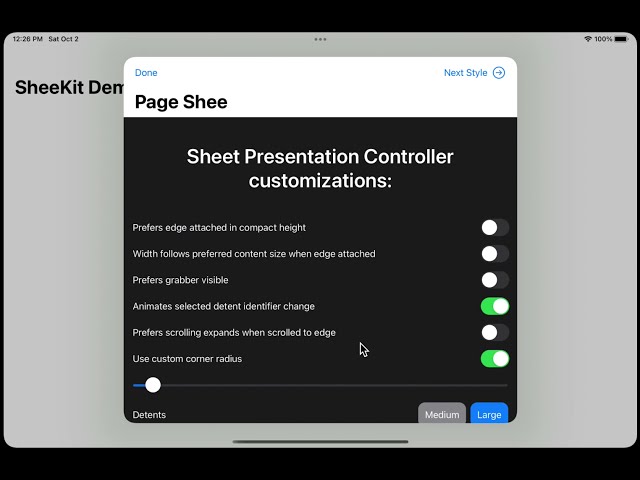

Demo of the library

Installation

Xcode 13

Select your project in File Navigator, then select the project again on top of the list of targets. You'll see list of packages.
Press ＋ button.
In the appeared window, press ＋ button in the bottom left corner.
In the appeared menu, select "Add Swift Package Collection"
In the appeared dialog, enter package collection URL: https://swiftpackageindex.com/edudnyk/collection.json
Press "Add Collection"
Select SheeKit package from the collection.

If you want to use SheeKit in any other project that uses SwiftPM, add the package as a dependency in Package.swift:

dependencies: [
  .package(name: "SheeKit", url: "https://github.com/edudnyk/SheeKit.git", from: "2.0.0"),
]

Next, add SheeKit as a dependency of your test target:

targets: [
  .target(name: "MyApp", dependencies: ["SheeKit"], path: "Sources"),
]

Carthage

If you use Carthage, you can add the following dependency to your Cartfile:

github "edudnyk/SheeKit" ~> 2.0.0

CocoaPods

If your project uses CocoaPods, add the pod to any applicable targets in your Podfile:

target 'MyApp' do
  pod 'SheeKit', '~> 2.0.0'
end
